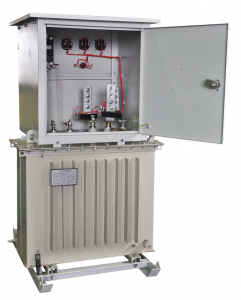

FOR CONCRETE HEATING AND SOIL THERMAL TREATMENT KTPTO-63 U1
Complete transformer substations for concrete heating and soil thermal treatment are designed to receive, convert and distribute electrical energy in power supply schemes for concrete heating and soil thermal treatment in areas with a temperate climate (from -45°C to +40°C).
Climatic type U1 according to GOST15150.
Normal operation of KTPTO is ensured under the following conditions:
1. Altitude above sea level - no more than 1000 m;
2. Environment - non-explosive, not containing conductive dust, aggressive gases and vapors in concentrations that reduce the parameters of the KTP to unacceptable limits;
3. Wind speed up to 36 m/s (wind pressure speed up to 800 Pa);
4. Atmosphere type - II according to GOST15150.
Basic technical data of KTPTO.
1. Rated power 63-80 kVA
2. Higher voltage 0.4 kV
3. Lower voltage step-regulated 49-60-70-85-103-121 V
4. Type of current alternating, three-phase
5. Frequency 50 Hz
6. Weight with transformer
