"Valon-A" LLC, Khmelnytskyi - we are a Ukrainian manufacturer specializing in the manufacture of transformer substations, switchgear and electrical equipment. We offer a wide range of transformer products, as well as design and installation services according to customer requirements.
Complete transformer substations from the manufacturer, CTS are complexes for receiving, converting and distributing electrical energy of three-phase alternating current with a frequency of 50 Hz.
Main characteristics:
- Power: from 10 to 4000 kVA depending on the model;
- High voltage (HV): 6 or 10 kV (some models - up to 27.5 or 35 kV);
- Low voltage (LV): 0.4 kV
Products are designed for operation in temperate climates (approximately from −25 °C to +40 °C or −45 °C to +40 °C, depending on the version
Main types of substations, Khmelnytsky
- Pole/mast KTP (KTPM-1V-25…250/10(6)/0.4 U1)
Single-transformer substations, placed on a pole or mast, designed for agricultural consumers, villages and small industrial facilities - Pole KTP (KTPS-25…250/10(6)/0.4 U1)
Also single-transformer, meet similar needs, with climatic version U1 according to GOST. Designed for use in temperate climates up to −45 °C - Kiosk dead-end - KTP-1 (KTPU-1-25…2500/10(6)/0.4 U1)
Substations in the kiosk format, installed as “dead-end”—that is, at the end of the line. Power up to 2500 kVA, suitable for medium and large facilities - Kiosk-through — KTP-2 (KTP-2-25…630/10(6)/0.4 U1)
Connected along the network, as a “transit” connection option. Used for agricultural farms, villages, small industrial facilities. Climatic version U1, from −45 °C to +40 °C - For urban networks — KTPG (KTPG-100…2500/10(6)/0.4 U1)
Block, through or dead-end type. Suitable for urban operation conditions — universal and compact - For railways — KTPZh (KTPZh-25…400/27.5/0.4 U1)
Used in railway networks, receive a voltage of 27.5 kV according to the “two-wire-flight” scheme (DPR) and convert it to 0.4 kV. Compact, reliable, with interlocks and safety automation - For heating concrete and soil — KTPTO-63 U1
Specialized substations for heating concrete structures or soil, especially in cold conditions down to −45 °C. Used in construction, earthworks, weather zones - Modular types (KTPM-VA 400…4000/35/0.4 UHL1)

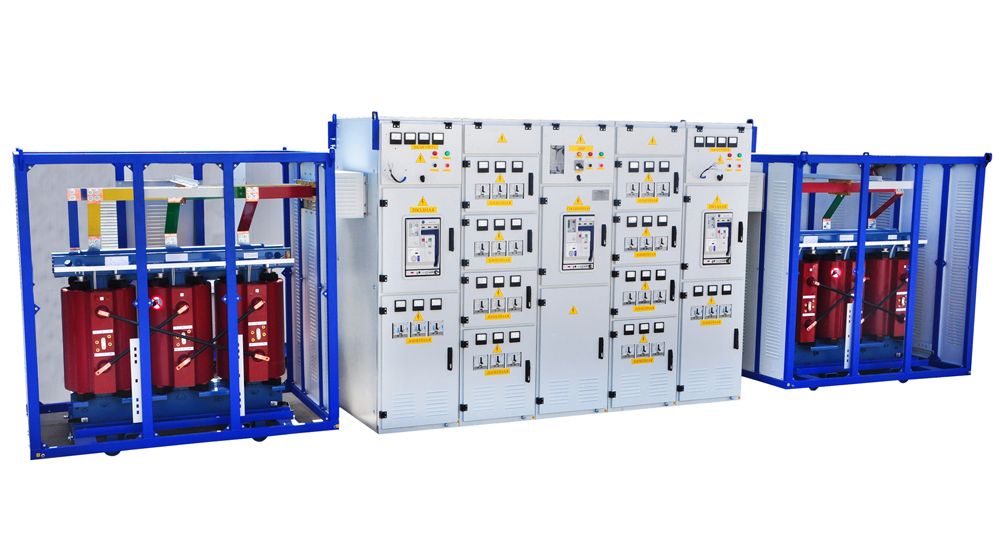

Solutions for large facilities — oil, gas industry, land reclamation, own needs of large substations. HV voltage up to 35 kV, high power up to 4000 kVA - General industrial KTP (250…2500/10(6)/0.4 U3, U1)
For industrial enterprises, with a capacity of up to 2500 kVA, climatic versions U3 and U1 - flexibility in products. They have specifications for height, humidity, atmospheric conditions
Certification and possibilities of an individual approach
The products are certified according to the UkrSEPRO system and comply with the state standards of Ukraine. Our company manufactures substations according to its own technical conditions, and is also ready to implement individual projects in accordance with the technical requirements of the customer.
In addition to substations from the manufacturer in Khmelnytskyi, we offer related equipment: Shcho-06 panels, switchgear, VN-RA load switches, disconnectors, dry and oil transformers, capacitor units, etc.
Summary
"Valon-A" LLC, is a reliable Ukrainian manufacturer of transformer substations, able to satisfy a wide range of requirements: from field mini-objects to complex industrial and infrastructure networks. Their range includes:
- Mast and pillar KTP,
- Kiosk - dead-end and through,
- Block for cities,
- Specialized - for railways, heating,
- Modular for large networks.
Key advantages: wide model range, climatic versions for various conditions, UkrSEPRO certification, the possibility of individual design according to the client's requirements.
